The DP-101-D is a discontinued product.
For new projects, we recommend "SP323-5" or "MA10/4".
------------------------------------------------------------------------------------------------------

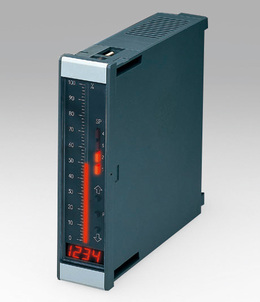

The DP-101-D is a 4-20mA input, bargraph meter with 4 digit LED display.
Input signal may be displayed as current or scaled to read in other
units (inch, %, etc).
Four realy outputs can be independently set by the user.
The DP-50-D and DP-101-D can be used with the analogue output probes
(GYSE, GYcAT, GYLT) or analogue controller for applications such as liquid
level monitoring and control.
The GKS-01 is a digital controller with 6 digit LED display, which can be
directly connected to GY probes (GYcRS, GYMR5, GYFRS, GYKM-RS).
| Display | Tricolor, 101 segment bargraph (graduated in 0-100%) 4 digit, 7 segment 8mm high, red LEDs Display range:-1999-9999 Accuracy:±(0.05% of reading + 2 counts) Decimal point:User selectable |
|---|---|
| Scaling | The 101 segment bargraph and digital display can be independently scaled (%, inch, etc.) by the user. |
| Input | 4-20mA |
| Power supply | +24(18-36)VCD 4.2W |
| Alarm output (Replay output) | 4 points 5 Amp form A x 2 (No.1 and No.3) 10 Amp form C x 2(No.2 and No.4) Conversions per sec :10 Time deleys programmable (No.1 and N0.2) |
| A/D converter | 14bit |
| Operating Temp | 0°C-+60°C |
| Storage Temp | -20°C-+70°C |
| Humidty | 20-95%RH (Non-condensing) |

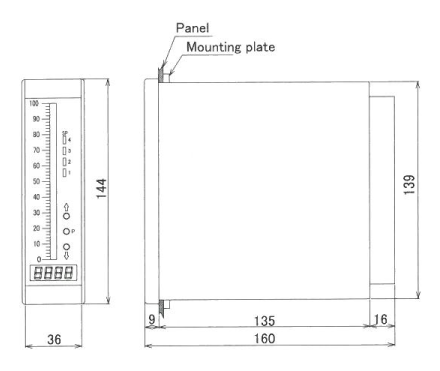

| Case dimensions | 3/32DIN (36W x 144H x 151D) |
| weight | 0.4Kg approx. |

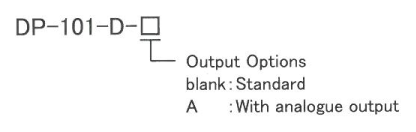

| DP-101-D | ||||||
|---|---|---|---|---|---|---|
 | ||||||
|
