GYPS Probe (Analogue / PWM / CANopen/SAEJ1939)All-in-one Series

All-in-one Series

GYPS Probe (Analogue / PWM / CANopen/SAEJ1939)

for built-in small hydraulic cylinder
GYPS Probe (Analogue / PWM / CANopen/SAEJ1939)

GYPS probe is the sensor for built-in hydraulic cylinder
which has analogue output.
The sensor head is compact and the head dead zone is also short,
so its total length becomes space saving.
With the dedicated software (GPM), zero and gain adjustment is
possible at the user.
Max. effective stroke is 2400mm.


( Created on Feb. 10. 2023 )

Specifications

Non-linearity≦±0.1mm (30-250mm)
≦±0.04%FS (251-2000mm)
≦±0.8mm (2001-2400mm)
Resolution≦0.06mm
CANopen:≦0.1mm
Reapeatablity≦±0.06mm
CANopen:≦±0.1mm
Temp. drift≦±0.006%FS/°C
Voltage output0.25〜4.75V、0.5〜4.5V
0〜10V (load: Min.2kΩ)
Current output4〜20mA (load: Max.250Ω)
PWM output1kHz 5V 95-5% (load : Min.5kΩ)
CANopenCiA-301 version 4.2
CiA-305 version 3.0.0
DS-406 version 4.2
Power supply+8〜36VDC (≦0.8W)
Sampling freq.Std. 1kHz (Total rod length : 1300mm)
Max. Pressure45MPa (continuous operating pressure)
Operating Temp.-20°C〜+85°C
Storage temp.-20°C〜+85°C
Vibration20G (5〜2000Hz)
Shock100G (2msec)
IP gradeIP67

(): Changed the values for CANopen output. (20230208)

Model No.

① Effective stroke
  30mm〜2400mm


② Head dead zone
  15 :15mm(Std.)
  □ :□mm (option)(specified by customers)


③ Tip dead zone
  70 :70mm(Std.)
  □ :□mm (option)(specified by customers)


④ Mount / Rod diameter
  P :O-ring, rod Φ10 (Std.)


⑤ Associated magnet
 < Magnet >
  M3  :No.3

 ・Please consult if you select a magnet of the other than above.
 ・This Model code means only specifying associated magnet.
 ・Ordering magnet individually.


⑥ Cable connection
  SG□F :pigtail / cable end : free
  SG□A :pigtail / cable end : with connector for relay
   (□ :cable length(m)、Max.10m)(*)
  KV□△ :M12 receptacle type
   □ :wire length (by 0.01m), Max.0.1m
   △ :pin assignment( H: pin assignment "H", G: pin assignment "G",
              FF: pin assignment "FF")

  (*) In case of using extension cable
   Voltage output : sensor cable (m) + extension cable (m) ≦ 10m
   Current output : sensor cable (m) + extension cable (m) ≦ 100m
   PWM output : sensor cable (m) + extension cable (m) ≦ 10m

⑦ Position output
  A1 :0.25〜4.75V (When magnet moves toward tip, output increase.)
  A2 :4.75〜0.25V (When magnet moves toward tip, output decrease.)
  A3 :0.5〜4.5V (When magnet moves toward tip, output increase.)
  A4 :4.5〜0.5V (When magnet moves toward tip, output decrease.)
  AD :0〜10V (When magnet moves toward tip, output increase.)
  AR :10〜0V (When magnet moves toward tip, output decrease.)
  BD :4〜20mA (When magnet moves toward tip, output increase.)
  BR :20〜4mA (When magnet moves toward tip, output decrease.)
  PWM1 :1kHz 5V (5〜95%)
  PWM2 :1kHz 5V (95〜5%)
  CO : CANopen

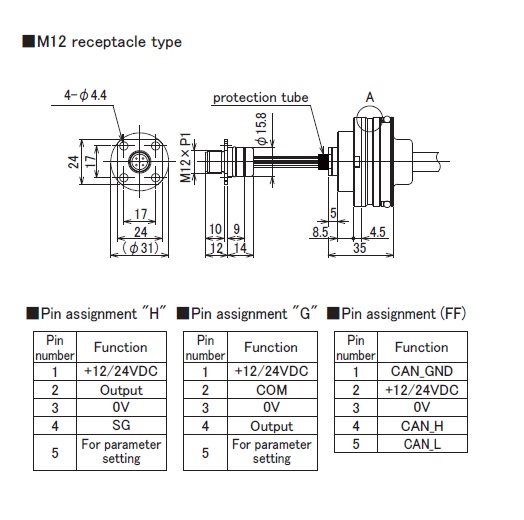

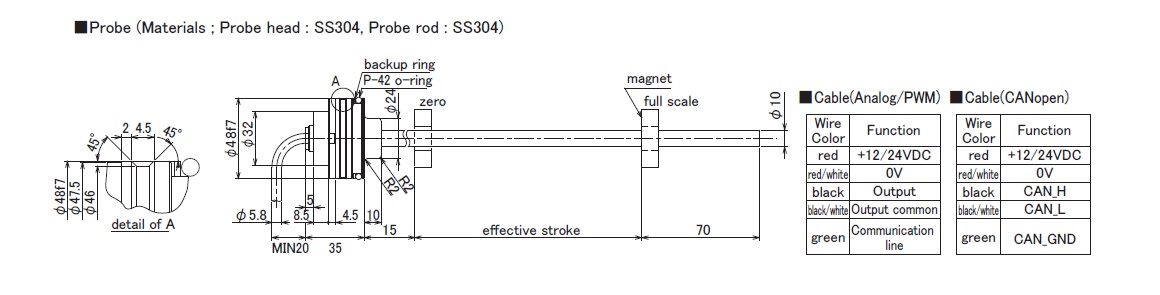

Dimensions

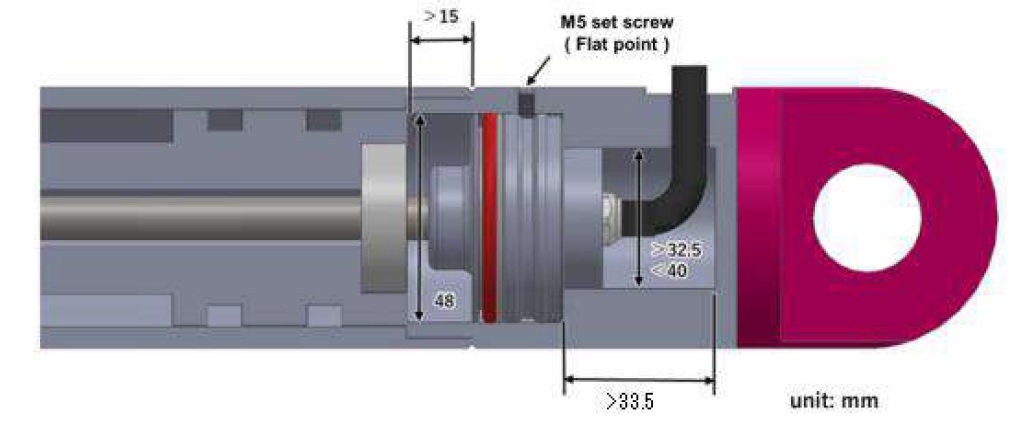

Probe M12 receptacle Installation example
Zoom ZoomZoom
