SANTEST CO.,LTD.

GYSE-AM Probe.All-in-one Series

All-in-one Series

GYSE-AM Probe.

Analogue output with scale (detachable probe element)
GYSE-AM Probe.

The scale was carved in a rod of the high accuracy analog
output type GYSE-A by 1mm pitch.
The scale is doing etching processing by the scale based on JIS first
grade, the magnet location can be confirmed by your eyes easily.
Oposition of the scale is an end face of HEX46.
Max. stroke is 400mm, rod diameter is Φ8.



( Created on Feb. 8. 2023 )

Specifications

Non-linearity≦±0.025%FS (Typ.)
Resolution16bit ( 1/65536 )
Repeatablity≦±0.001%FS/°C ( Min. ±3μm )
Temp. drift≦±20ppmFS/°C
Voltage output0〜10V or 10〜0V ( output current : Max.5mA, load :Min. 2kΩ )
Current output4〜20mA or 20〜4mA ( load : Max.5mA )
Alarm Open drain 50V 0.1A ( for magnet missing )
Power supply+24(±2)VDC (80mA)
Sampling freq.1kHz
Max. Pressure35MPa ( probe rod )
Operating temp.-20°C〜+75°C
Storage temp.-40°C〜+75°C
Vibration15G ( 20〜100Hz )
Shock100G ( 2msec)
IP gradeIP67

Model No.

① Effective stroke
  15〜400mm


② Head dead zone
  50 : 50mm (Std.)
  □ : □mm (option)( specified by customers )
・Possible Min. length depends on the selected magnet or float.


③ Tip dead zone
  □ : 70mm/ 90mm/ 100mm (Std.)

tip DZmagnetfloat
70mmM2PN, M0SM,M0LM,
M3,M11N
F25N,F28N
90mmF28S,F30S
100mmT144,T163F40S,F42S,F50S,F54S
  □ : □mm (option)(specified by customers)
・Possible Min. length depends on the selected magnet or float.


④ Thread / Rod diameter
  M8 :M24xP1.0, rod Φ8
  N8 :M18xP1.5, rod Φ8
  U8 :3/4-16UNF-3A, rod Φ8
  Z :EF ( flexible element ) only ( without outer housing )


⑤ Associated magnet or float
magnetfloat
M2PN :No.2PN (Std.)
M0SM :No.ΦSPM
M0LM :No.ΦLPM
M3 :No.3
M11N :No.11N
T144 :No.T14-M4
T163 :No.T16-M3
F28S:Φ28 SS316
F30S :Φ30 SS316L
F40S :Φ40 SS316(B)
F42S :Φ43 SS316
F50S :Φ50 SS316L
F54S :Φ54 SS304
F25N :RF-A10 plastic
F28N :RF-A6 plastic

   ・Selecting magnet from page 116〜118(GG).
   ・Please consult our factory in case of requesting special magnet or float.
   ・This model code means only specifying associated magnet or float.
   ・Ordering magnet or float individually.


⑥ Cable connection
  8P : connector (M12-8pin)
  △G□F : pigtail / cable end : free
  △G□A : pigtail / cable end : with connector for relay
    (□ : cable length (m)、Max.10m )(*)
    (△ : cable type
       S :standard, H :high temp. cable, R :robot cable, UL : cUL cable)
  CN :existing connector (Please refer to P.109 of option.)

(*) In case of using extension cable
Voltage output : sensor cable (m) + extension cable (m) ≦ 10m
Current output : sensor cable (m) + extension cable (m) ≦ 100m
    ・Please confirm extension cable on page 120〜122.
    ・Ordering loose mating connector individually.


⑦ Position output( OUT1 )
  AD :0〜10V( When magnet moves toward tip, output increase )
  AR :10〜0V(When magnet moves toward tip, output decrease )
  BD :4〜20mA( When magnet moves toward tip, output increase )
  BR :20〜4mA( When magnet moves toward tip, output decrease )
  CD□□ :bipolar output(-□V〜+□V)
        (for example CD10:-10V〜+10V)
  CR□□:bipolar output(+□V--□V)
        (for example CR05:+5V〜-5V)
  V Z/F :option (specified voltage)
        (for example V1/5:1〜5V, V9.5/0.5:9.5〜0.5V)
  I Z/F :option (specified current)
        (for example I5.2/20:5.2〜20mA, I18/5:18〜5mA)
   【Z=output at zero position, F=output at full position】


⑧ Option : Analogue output(OUT2)
  ・N : without option (Std.)
  ・Position output : select from ⑦


⑨ Option
  blank :without option
  H0 :probe rod 100°C
  ・Please confirm the details of option on page 112.

Dimensions

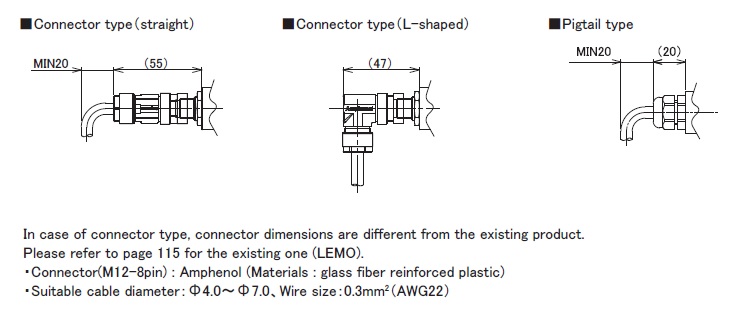

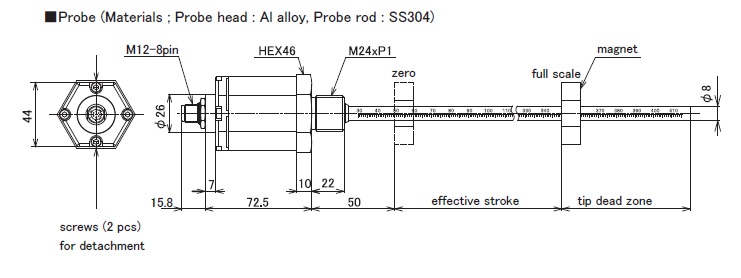

Probe Connector Cable Detachable probe element
Zoom ZoomZoomZoom
