GYSE-S probe outputs displacement of the magnet as SSI
(Synchronous Serial Interface).
SSI is output of a serial communication-type and outputs the position
data of 24 〜 27bit.
When using SSPC-03 of separate sale, you can convert SSI to parallel
data.
So you can get the data in the I/O unit.
The inside probe element can be detached from the outer housing,
and with the captive software (GPM), zero and gain adjustment
is possible at user side.
・ CE marking
・ Noise cancellation
・ GPM setting
( Created on July. 10. 2023 )
| Non-linearity | ≦±0.025%FS ( Typ. ) |
|---|---|
| Resolution | 0.1mm〜0.1μm |
| Repeatablity | ≦±0.001%FS ( Min . ±3μm ) |
| Temp. drift | ≦±15ppmFS/°C |
| Position ( Std. ) | SSI ( Synchronized Serial Interface ), 24〜27bit, Binary(Std.) or Gray |
| Velocity ( option ) | not available |
| Alarm | Open drain 50V 0.1A ( for lost magnet ) |
| Power supply | +24(±2)VDC (70mA) |
| Sampling freq.(＊) | Std. 1kHz ( Total rod length : 1300mm ) |
| Max. Pressure | 35MPa ( probe rod ) |
| Operating temp. | -20°C〜+75°C |
| Storage temp. | -40°C〜+75°C |
| Vibration | 15G ( 20〜100Hz ) |
| Shock | 100G ( 2msec ) |
| IP grade | IP67 |
・The above mentioned accuracy applies to sensors with an effective stroke of 300mm or more.
・The specification of stroke less than 300mm is equal that of stroke 300mm.
(*) Sampling freq. is available to Max. 3.75kHz by option. It depends on the
total rod length (shows in Model ⑬), and the consumption current increases.
① Effective stroke
15〜7500mm
② Head dead zone
50 :50mm (Std.)
□ :□mm ( option ) ( specified by customers )
・Possible Min. length depends on the selected magnet or float.
③ Tip dead zone
□:70mm/ 90mm/ 100mm(Std.)
・S (Std. length) depends on the selected magnet or float in ⑤.
| □ | tip DZ | magnet | float |
|---|---|---|---|
| 70 | 70mm | M2PN, M0SM, M0LM, M3, M11N, BA | F25N, F28N |
| 90 | 90mm | F28S, F30S | |
| 100 | 100mm | T144, T163 | F40S, F42S, F50S, F54S |

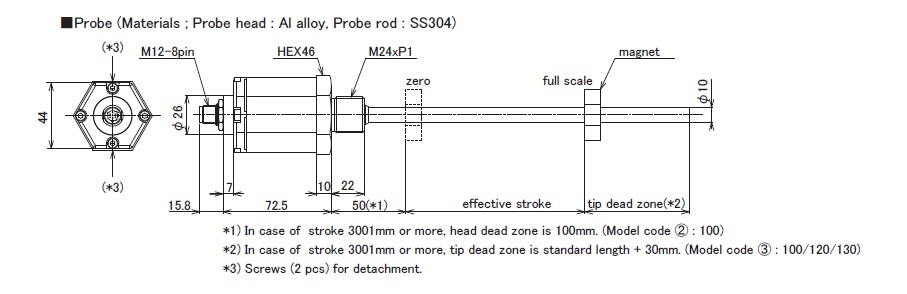

④ Thread / Rod diameter
M :M24xP1.0, rod Φ10(Std.)
N :M18xP1.5, rod Φ10
U :3/4-16UNF-3A, rod Φ10
M8 :M24xP1.0, rod Φ8
N8 :M18xP1.5, rod Φ8
U8 :3/4-16UNF-3A, rod Φ8
M14 :M24xP1.0, rod Φ13.8
Z :Probe inside element only (without outer housing)
| magnet | float |
|---|---|
| M2PN :No.2PN (Std.) M0SM :No.ΦSPM M0LM :No.ΦLPM M3 :No.3 M11N :No.11N T144 :No.T14-M4 T163 :No.T16-M3 BA : No.2KYN-17-LG | F28S :Φ28 SS316L F30S :Φ30 SS316L F40S :Φ40 SS316(B) F42S :Φ43 SS316L F50S :Φ50 SS316L F54S :Φ54 SS304 F25N :RF-A10 plastic F28N :RF-A6 plastic |

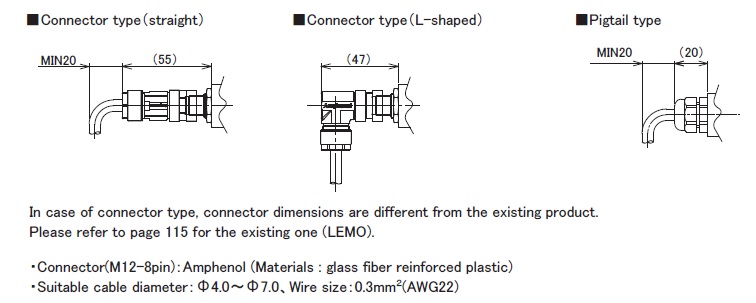

⑥ Cable connection
8P:Connector (M12-8pin)
△G□F:pigtail / cable end : free
△G□A:pigtail / cable end : with connector for relay
(□:cable length(m)、Max.10m)(*)
(△:cable type
S:standard, H:high temp. cable, R:robot cable, UL:cUL cable)
CN:existing connector (Please refer to page 115 of option.)
(*) In case of cable 10m or more, please use extension cable.
・Please confirm extension cable on page 120-122.
・Ordering loose mating connector individually.
⑦ Resolution
D2:0.1mm
D3:0.05mm
D4:0.01mm (Std.)
D5:0.005mm
D7:0.002mm
D8:0.001mm
DF:0.5μm
DG:0.2μm
DH:0.1μm
⑧ Linearity option
blank:without option
L : Linearization option (at room temperature).
⑨ Direction
D:When magnet moves toward tip, output increase
R:When magnet moves toward tip, output decrease
⑩ Number of bits
4:24bit (Std.)
5:25bit
6:26bit
7:27bit
⑪ Output code
B:Binary(Std.)
G:Gray

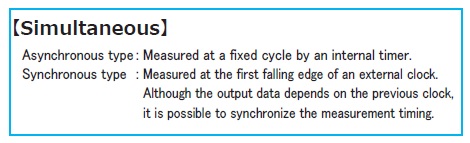

⑫ Synchronous
5A:asynchronous SSI
5S:synchronous SSI
⑬ Option
blank:without option
SRT:SRT option (Recommendation:pigtail type)
・Please confirm the details of SRT option on page 114.
High-frequency sampling:
Only when "5A (asynchronous)" is selected in ⑫.
X2:2kHz sampling (total rod length : Max.700mm)
X3:3kHz sampling (total rod length : Max.500mm)
X4:3.75kHz sampling (total rod length : Max.400mm)
| Probe | detachable probe element | Connecter & Pigtail | Cable | |||
|---|---|---|---|---|---|---|
 |  |  |  | |||
|
| | |
