GMR2/GMRC-200 series is a high-resolution robust linear encoder
of which structure is simplified and can enjoy heat-resistant 120°C.
Succeeding to GMR sensor principle of operation, sleeve dia has
now widened Φ18mm and offering more robust structure.
Detecting absolute position of each sleeve pair within one pitch of
51.2mm and incremental position over one pitch by counting pitches.
GMR2 series are the semi-absolute linear encoder of 24 bits
integrated data of one pitch absolute and pitch count.
SC type has now been added making cable duct mount possible.
extremely high resistant to harsh circumstances due to no
electronic parts employed in the sensor
integrated into hydraulic cylinder and can be used for
equipment of such as steel-mill plant
no wear-out expected since no mechanical contact
between sensor-rod and sleeve
resolution 6.25μm of absolute output, in addition incremental
output is prepared.
| Sensor | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Effective stroke | 25.6mm-1996.8mm | |||||||||||||
| Absolute sensing | 51.2mm | |||||||||||||
| Accuracy | 0.15mm＋0.01mm×(stroke/51.2) | |||||||||||||
| Operating temp | -20°C-+120°C | |||||||||||||
| Storage temp | -40°C-+130°C | |||||||||||||
| Operating humidity | 10-100%RH | |||||||||||||
| Vibration | 20G (10-150Hz) direction XYZ | |||||||||||||
| Shock | 100G 6ms direction XYZ | |||||||||||||
| Admissible pressure | 35MPa (probe) | |||||||||||||
| Oil proof | mineral oil, water-glycol / phosphoric acid ester, fatty acid ester | |||||||||||||
| Protection | IP67 (10kPa, 30min) | |||||||||||||
| Cable (max) | genuine 200m / KPEV-S 100m | |||||||||||||
| Controller | ||||||||||||||
| Output | Open collecor photo isolate | |||||||||||||
| Resolution | 0.00625mm | |||||||||||||
| Positional output | 24bit (13bit absolute+11bit pitch count) | |||||||||||||
| Output Code | Binary or Gray | |||||||||||||
| Sample rate | 5kHz / 2.5kHz / 1.25kHz / 0.625kHz | |||||||||||||
| Power supply | DC 22-30V | |||||||||||||
| Consumption | < 8W (DC24V 0.3A) | |||||||||||||
| Operating temp | -20°C-+65°C | |||||||||||||
| Storage temp | -40°C-+75°C | |||||||||||||
| Operating humidity | 10-90%RH (no-condense) | |||||||||||||
| Vibration | 2G (10-150Hz) | |||||||||||||
| Shock | 50G (11ms) | |||||||||||||
| Dielectric withstand voltage | AC500V @ 1 minute | |||||||||||||
| Insulation resistance | >=10MΩ with 500VDC | |||||||||||||
| Protection | IP30 | |||||||||||||
| Dimensions | 50W×270H×140D (connector not included) | |||||||||||||
(Note)
Output code and sample rate are configurable at user side by switch integrated.

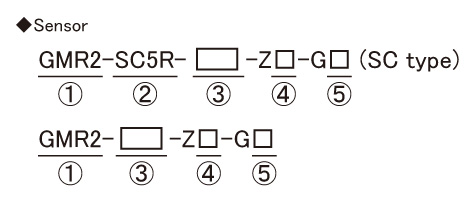

(1):sleeve dia Φ18 type
(2):cable duct mount type (cable direction radial)
(3):stroke (unit 0.1mm, multiple of 25.6)
(4):Z dimension (unit 0.1mm)
(5):cable length (unit 1m)

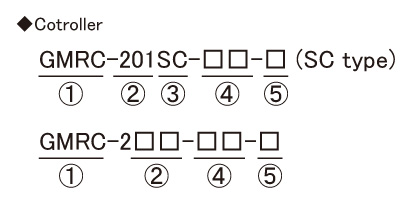

(1):GMR2 controller
(2):output 01:pararell 02:parallel/incremental
(3):for SC5R type sensor
(4):resolution UF:6.25μm
(5):code B:binary G:gray

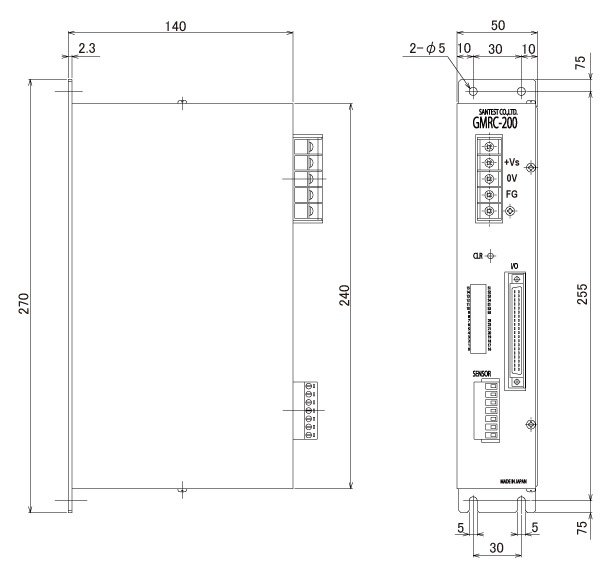

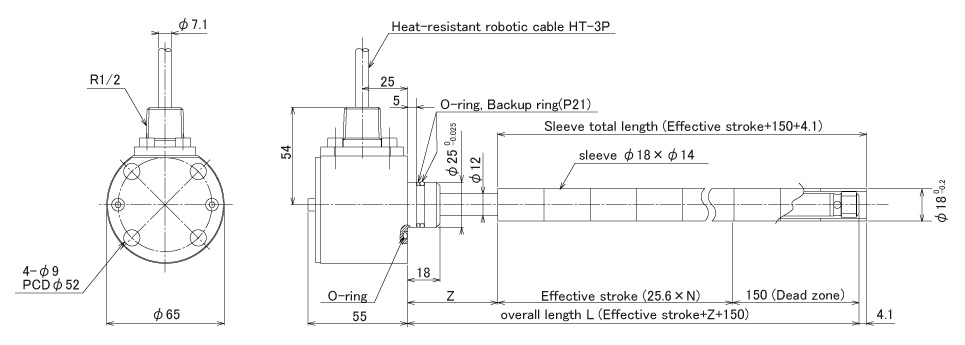

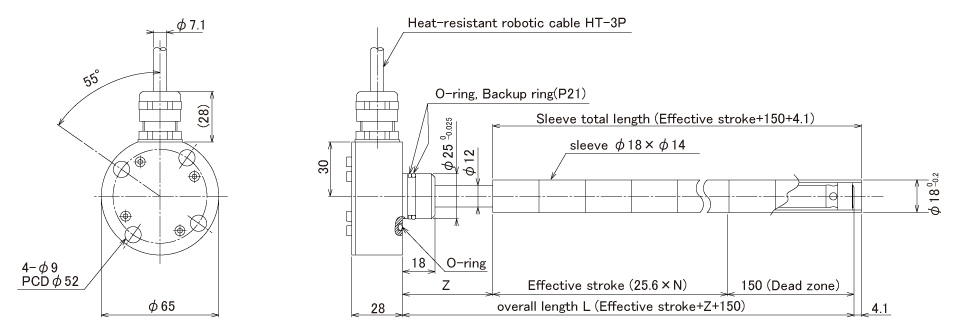

| GMR2-SCR5 sensor | GMR2 sensor | GMRC controller (SC type is also same shape) | ||||
|---|---|---|---|---|---|---|
 |  |  | ||||
|
| |
