SANTEST CO.,LTD.

Float (GY22-017E)Magnet/Float/Cable

Magnet/Float/Cable

Float (GY22-017E)

Float  (GY22-017E)

●Cautions for installing a float
  All floats have installing directions, correct direction is required.
 Please refer to instruction manual attached to the products.
●Other than above-mentioned floats, custom order is available.
●In case corrosive or high pressure application, custom order of
 float material such as Titanium, PVC, Teflon etc available.
●The location of the actual liquid level depends on the specific
 gravities of the float and the liquid.

( Created on Feb. 8. 2023 )

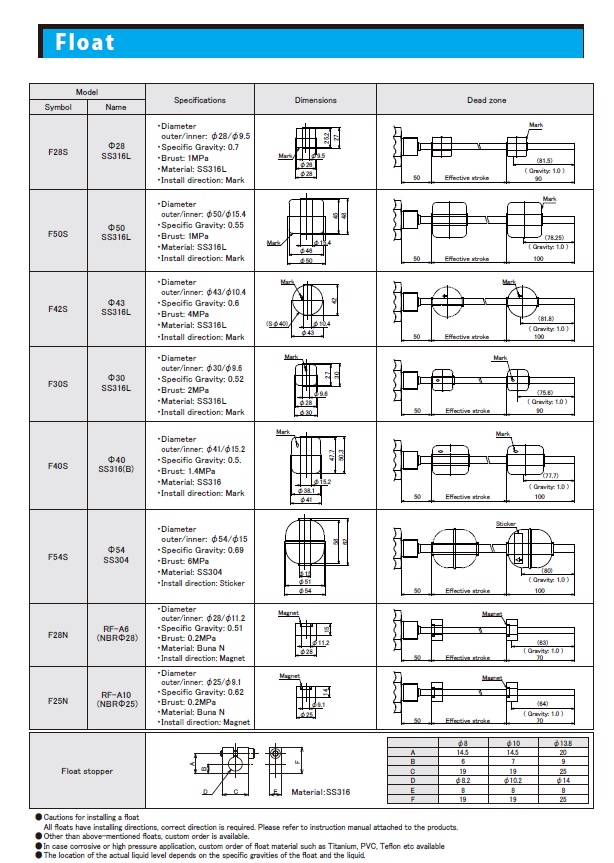

Dimensions

Float
Zoom

For more detailed information, please obtain from the catalog download below.
