●Other special magnets would be available for your request.

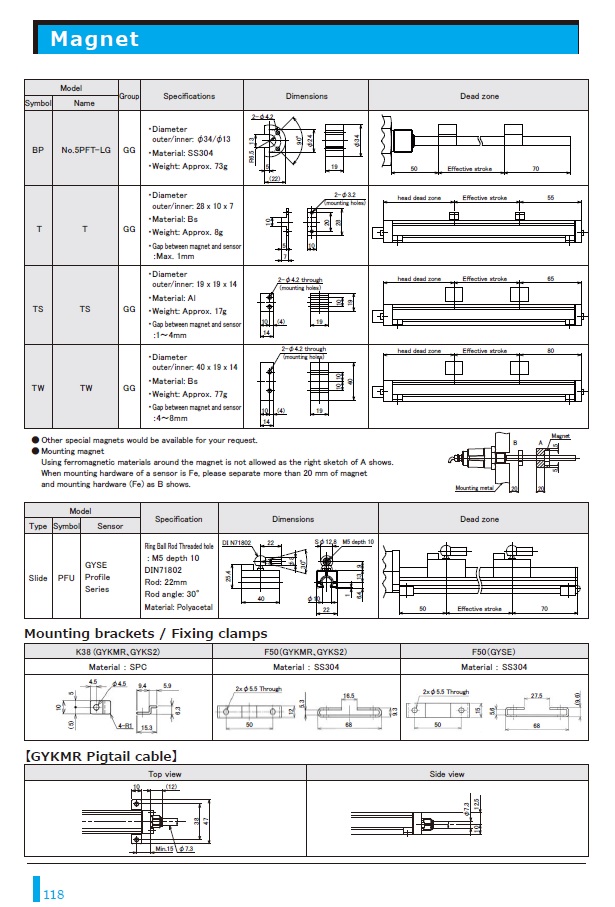

●Mounting magnet
Using ferromagnetic materials around the magnet is notallowed as the right sketch of A shows.
When mounting hardware of a sensor is Fe, please separate more than 20 mm of
magnet and mounting hardware (Fe) as B shows.
( Created on Feb. 8. 2023 )

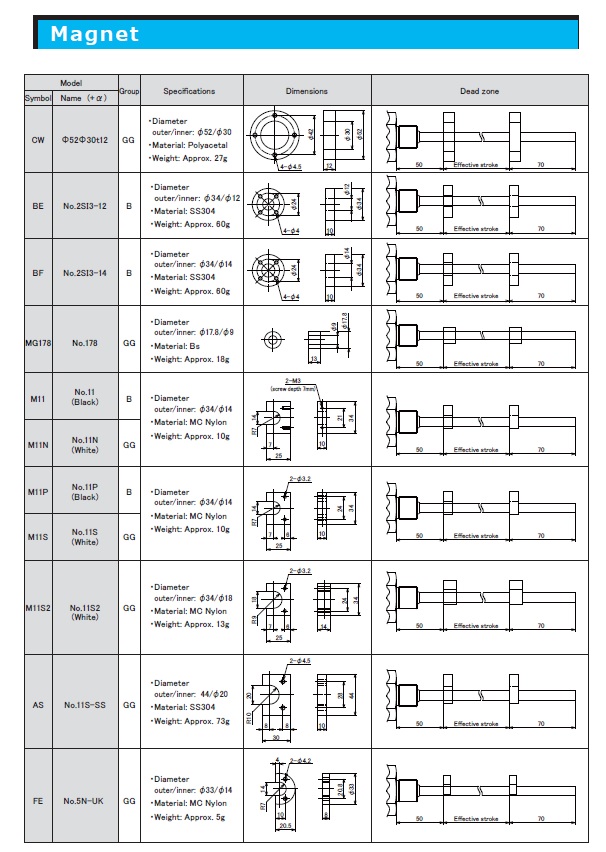

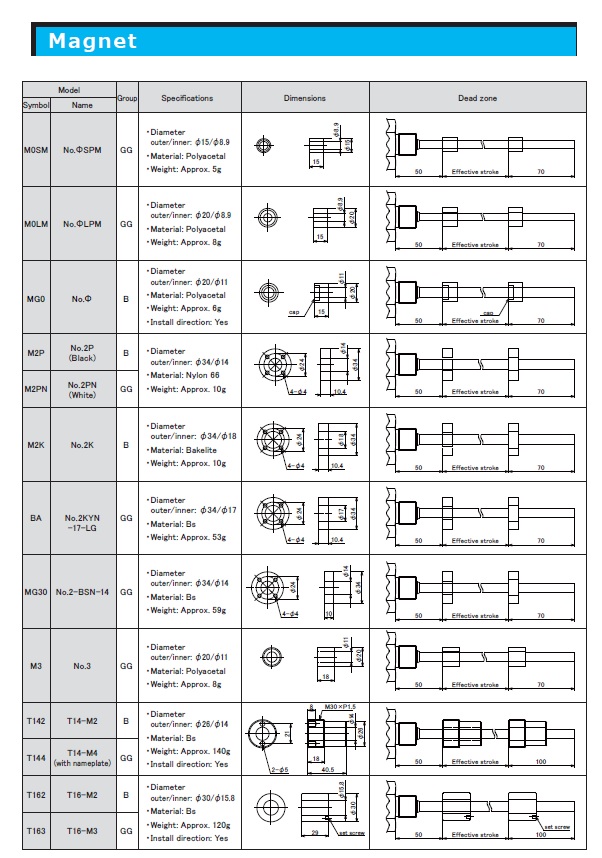

| Magnet-1 | Magnet-2 | |||||
|---|---|---|---|---|---|---|
 |  |  | ||||
|
| |
For more detailed information, please obtain from the catalog download below.
