SANTEST CO.,LTD.

IRDM-CFN.Model IRD Series

Model IRD Series

IRDM-CFN.

CC-Link IE network function
IRDM-CFN.

This is a master module of IRD series. It is possible to build up
CC-Link IE Field system with using some slave modules for
one IRDM-CFN.
All data in IRD system are communicated with PC (USB) or
the host system (CC-Link IE Field).

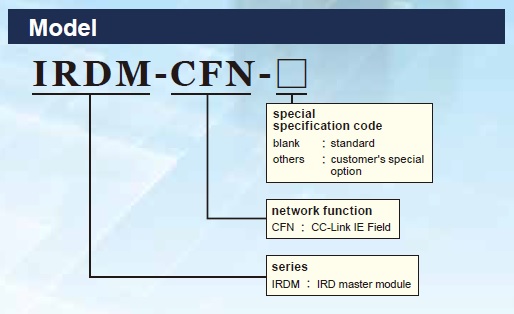

Model No.

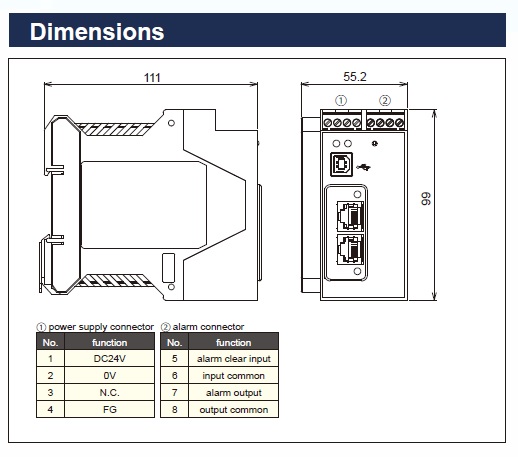

Dimensions
