SANTEST CO.,LTD.

IRDS-AI4.Model IRD Series

Model IRD Series

IRDS-AI4.

Analogue INPUT module
IRDS-AI4.

This module is a slave module for analogue INPUT of IRD
series. It has 4 input ports for voltage or current.

● Having 4 ports for voltage or current input.
● Voltage input range : ±10V, resolution : 1/60000
● Current input range : 0-20mA, resolution : 1/15000
● Input analogue data is transferred to the industrial network
(CC-Link, EtherNet/IP, PROFIBUS) through IRD master module.
● Possible to transfer the analogue data to another slave module
(IRDS-DO) and to have digital output.
● Possible to make inside parameters setting (offset value to the
input analogue and low pass filter degree etc) through the IRD
master module over host industrial network or the dedicated
Windows software (IRD Manager).
● With digital low pass filter for eliminating noise on input
analogue data.
● 0.2ms (5kHz) update inside*1
● RoHS compliant

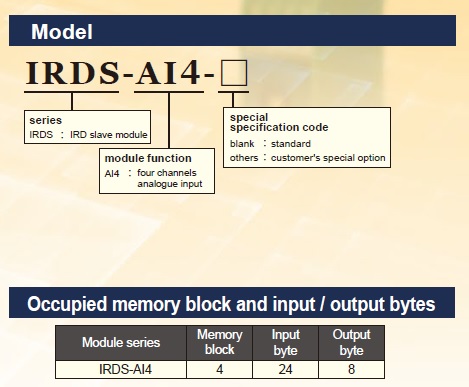

Model No.

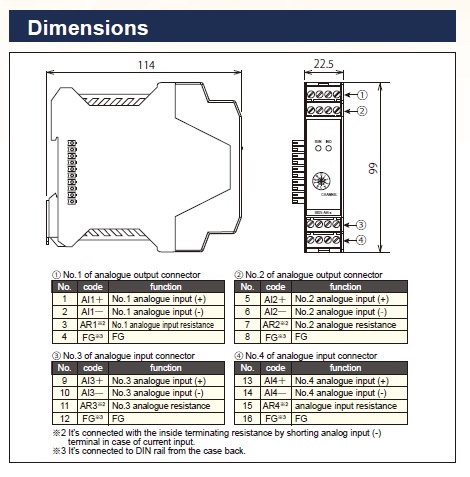

Dimensions
