This is a slave module for analogue INPUT / OUPUT of IRD series.
It has 2 input ports and 2 output ports for voltage or current.
Input analogue data is transferred to other slave module (IRDS-DO)
and have digital output, and the data which is transferred from
other IRD slave module have analogue output.

● Having 2 input and 2 output ports and selecting voltage or
current for each port.

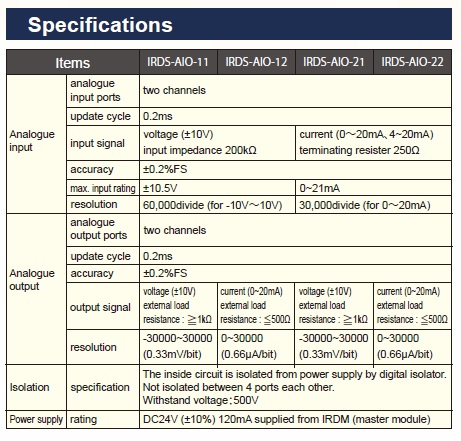

● Voltage range for input / output : ±10V, resolution : 1/60000
● Current range for input / output : 0-20mA, resolution : 1/15000
● Input analogue data is transferred to the industrial network
through IRD master module or possible to be transferred to other
slave module (IRDS-DO) and to have digital output.
● Output analogue data which is transferred from other IRD slave
module or from host industrial network through IRD master
module.
● Possible to make inside parameters setting (offset value to the
input or output and low pass filter degree etc.) through IRD
master module over host industrial network or dedicated
Windows software (IRD Manager).
● With digital low pass filter for eliminating noise on input / output
analogue data.
● Possible to make the upper and lower limit in output range.
● RoHS compliant
