This is a slave module for rotary VR resolver of IRD series.
It can connect one or two resolvers and measure the angle position.

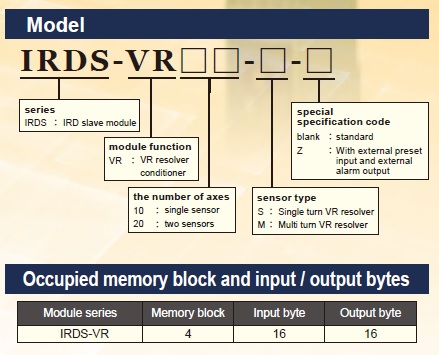

● IRDS-VR10 : single rotary resolver
● IRDS-VR20 : two rotary resolvers
● The data is transferred to the industrial network through IRD
master module. (CC-Link, EtherNet/IP, PROFIBUS)
● Possible to have analogue or digital output from other slave
modules in IRD system. (IRDS-AIO, AO4 and DO)
● Possible to set or change the inside parameters through IRD
master module over host industrial network or the dedicated
Windows software (IRD Manager).
● Possible to set preset value and alarm output
(Z type for single unit has the external input and output.)
● Possible to set upper and lower limit output.
● Self diagnosis function : cable error, module power supply error
● RoHS compliant
