SANTEST CO.,LTD.

IRDS-WG.Model IRD Series

Model IRD Series

IRDS-WG.

Function generator module
IRDS-WG.

This is a slave module for function generation of IRD series.
It generates several kinds of wave signals like sine, cosine,
triangle, square and saw wave.
One or Four channel type is available.

[Functions and Features]

● IRDS-WG-1:one channel type
● IRDS-WG-4:four channels type
● Possible to have analogue or digital output from other slave
 modules in the system. (IRDS-AIO, AO4 and DO)
● The data is transferred to the industrial network through IRD
 master module. (CC-Link, EtherNet/IP, PROFIBUS)
● Possible to set or change the inside parameters through IRD
 master module over host industrial network or the dedicated
 Windows software (IRD Manager).
● Possible to generate any kinds of wave signals as above in
 IRDS-WG inside through IRD master module over host industrial
 network or the dedicated software (IRD Manager), or to generate
 wave signals through SD card (CSV file).
● Possible to make max. 12,000 points wave if you save the
 dedicated memory card.
● Function generator : sine, cosine, triangle, square or saw wave.
● Possible to add the slope of the amplitude of starting / stopping
 to the external wave which is acquired.
● Possible to combine two signals for the same wave.
● SYNC output : Possible to count up the wave which is
 synchronized with generated wave.
● External clock input / output : Possible to synchronize some
 IRDS-WG or to be synchronized with the external clock.
● RoHS compliant

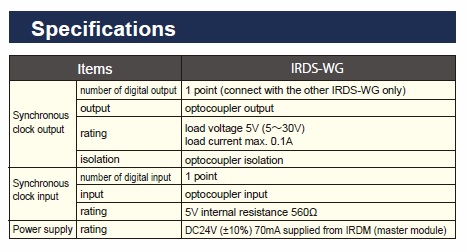

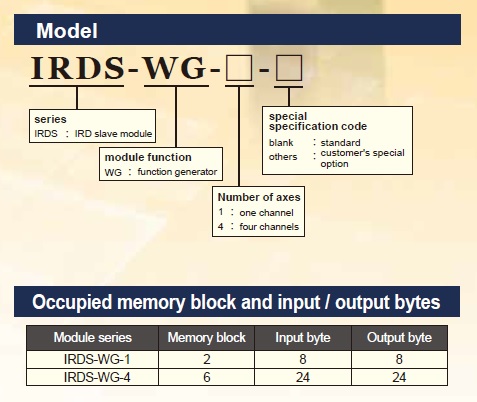

Model No.

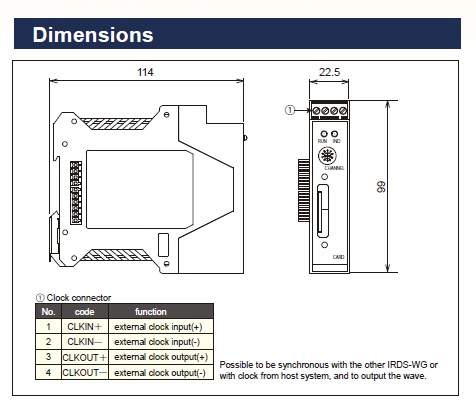

Dimensions
