Option-1: High Ambient Temp. version+

Option-1: High Ambient Temp. version+

This is high ambient temperature probe (rod parts only) of Heavy Duty
version.
Employing selected materials and electronics, this option works in
ambient temperature up to 200°C (rod parts only).
(Please consult us in case of more than 200°C.)
As the operating temperature of probe head is to be lower than +80°C,
cooling sensor head is required at user side or we recommend
heat-sink option.


(Created on Feb. 8. 2023)

Specifications

Non-linearity≦±0.1%FS Typ.
Resolution(Analogue) ≦0.01%FS
(Digital) 0.1mm
Repeatability
 (room temp.)
≦±0.05%FS
Temp. drift≦±70ppmFS/°C
Max. Pressure35MPa (probe rod)
Operating temp.probe head :-5°C〜+80°C
probe rod :〜100°C(Model:H0)
     :〜120°C(Model:H1)
      :〜200°C(Model:H2)

 ・The above mentioned accuracy applies to sensors with an effective stroke of 300mm or more.
 ・The specification of stroke less than 300mm is equal that of stroke 300mm.

【 Corresponding temperature (rod part only)】
  ・ H0: 100 °C
  ・ H1: 120 °C
  ・ H2: 200 °C

【Available probe】

ProbeH0H1H2
GYcRPH0H1EH2E
GYHRStandardH1 H2
GYHTRStandardStandard ×
GYcATH0××

  * With heat-sink : H1E, H2E
   Without heat-sink : H0, H1

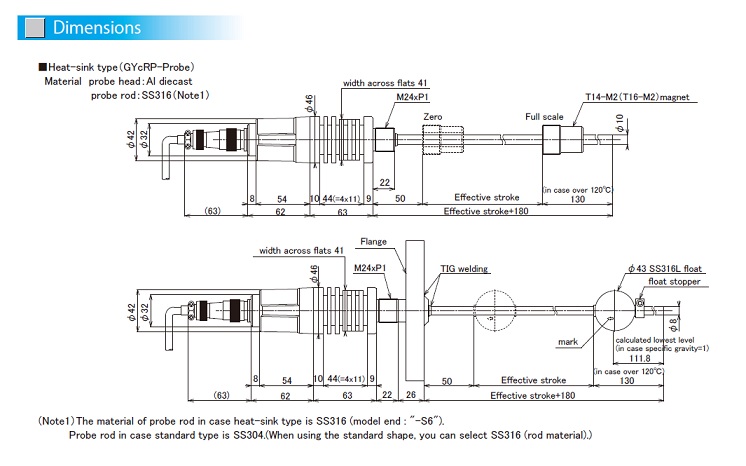

Dimensions

Dimensions
