SANTEST CO.,LTD.

GYcAT Probe.All-in-one Series

All-in-one Series

GYcAT Probe.

Standard analogue output
GYcAT Probe.

You can get a voltage or current analog signal proportional to magnet
position only by applying a 24VDC power supply directly to GYcAT.
It has alarm output and is equipped with noise cancellation functions.
By the option, it is available with the high speed sampling, SRT, and
high temperature (rod parts only).

 ・ CE marking
 ・ Noise cancellation

 ( Created on Feb. 2. 2023 )

Specifications

Non-linearity≦±0.05%FS (Typ.)
Resolution≦0.01%FS
Repeatability≦±0.01%FS
Temp. drift≦±40ppmFS / °C
Voltage output0〜10V or 10〜0V
( output current :Max.5mA, load :Min.2kΩ )
Current output4〜20mA or 20〜4mA
( load :Max.500Ω )
Alarm outputOpen collector 30V 0.1A
Power supply+24(±2)VDC ( 50mA )
Sampling freq. (*)Std. 1kHz ( total rod length : up to 1300mm )
Max. Pressure35MPa ( probe rod )
Operating temp.-20°C〜+80°C
Storage temp.-40°C〜+80°C
Vibration6G ( or 40Hz 2mmPP )
Shock50G ( 2msec )
IP gradeIP67 ( 10kPa, 30min )

・The above mentioned accuracy applies to sensors with an effective stroke of 300mm or more.
・The specification of stroke less than 300mm is equal that of stroke 300mm.
(*) Sampling freq. is available to Max. 8kHz by option. It depends on the total rod length
  (shows in Model ⑧), and the consumption current increases.

Model No.

① Effective stroke
  15〜3500mm

② Head dead zone
  50: 50mm (Std.)
  □: □mm ( option ) ( specified by customers )
  ・Possible Min. length depends on the selected magnet or float.

③ Tip dead zone
  □: 70mm/ 90mm/ 100mm (Std.)

tip DZmagnetfloat
7070mmM2P, MG0, M11F25N, F28N
9090mmF28S, F30S
100100mmT142, T162F40S, F42S,
F50S, F54S
 □: □mm ( option ) ( specified by customers )
  ・Possible Min. length depends on the selected magnet or float.

④ Thread / Rod diameter
  M :M24xP1.0, rod Φ10(Std.)
  N :M18xP1.5, rod Φ10
  U :3/4-16UNF-3A, rod Φ10
  M8 :M24xP1.0, rod Φ8
  N8 :M18xP1.5, rod Φ8
  U8 :3/4-16UNF-3A, rod Φ8
  M14 :M24xP1.0, rod Φ13.8

⑤ Associated magnet or float
magnetfloat
M2P :No.2P (Std.)
MG0 :No.Φ
M11 :No.11
T142 :No.T14-M2
T162 :No.T16-M2
F28S :Φ28 SS316L
F30S :Φ30 SS316L
F40S :Φ40 SS316(B)
F42S :Φ43 SS316L
F50S :Φ50 SS316L
F54S :Φ54 SS304
F25N :RF-A10 plastic
F28N :RF-A6 plastic

  ・Selecting magnet from page 116〜118(B).
  ・Please consult our factory in case of requesting special magnet or float.
  ・This model code means only specifying associated magnet or float.
  ・Ordering magnet or float individually.

⑥ Cable connection
  CN : connector
  △G□F : pigtail / cable end : free
  △G□A : pigtail / cable end : with connector for relay
    (□ : cable length(m)、Max.10m)(*)
    (△ : cable type
       S:standard, H:high temp. cable, R:robot cable, UL : cUL cable)

 <Water proof option>(recommendation : pigtail (WP3G))
  WPCN : submersible connector type
  WP3G□F : pigtail / cable end : free
  WP3G□A : pigtail / cable end : with connector for relay
    (□:cable length(m)、Max.10m)(*)
  ・P113 shows the detailed information
  (*) In case of using extension cable
   Voltage output : sensor cable (m) + extension cable (m) ≦ 10m
   Current output : sensor cable (m) + extension cable (m) ≦ 100m
   ・Please confirm extension cable on page 120〜122.
   ・Ordering loose mating connector individually.

⑦ Position output
  AD :0〜10V ( When magnet moves toward tip, output increase )
  AR :10〜0V ( When magnet moves toward tip, output decrease )
  BD :4〜20mA ( When magnet moves toward tip, output increase )
  BR :20〜4mA ( When magnet moves toward tip, output decrease )
  CD□□ :bipolar output (-□V〜+□V )
       ( for example CD10 :-10V〜+10V )
  CR□□ :bipolar output (+□V〜-□V)
       ( for example CR05 :+5V〜-5V )

⑧ Option
  blank:without option
  12S:Power supply +12VDC (total rod length L ≦630mm)
    output:0〜5V or 4〜20mA(load:Max.500Ω)
  SRT:SRT option
  (⑥ cable connection:pigtail type only (SG□) )
  H0:probe rod 100°C
  X2:2kHz sampling (total rod length : Max.750mm)
  X4:4kHz sampling (total rod length : Max.450mm)
  X8:8kHz sampling (total rod length : Max.300mm)

  ・Please confirm the details of options on page 112〜114.

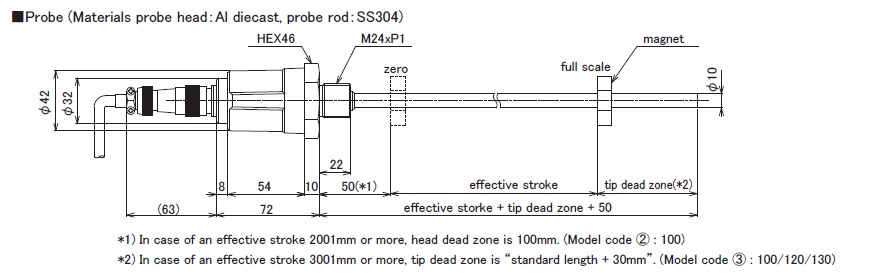

Dimensions

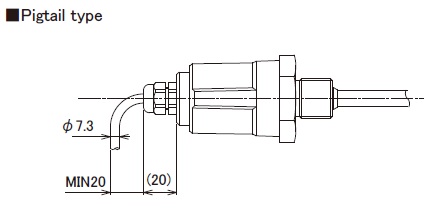

Probe Pigtail type Cable
Zoom ZoomZoom

・Connector : Sanwa SNW-1607-PCF(Material:zinc alloy fluoroplastic)
・Suitable cable diameter : Φ6.6-Φ7.5, Wire size:Less than 0.5mm2
