The sensor head of GYGS probe is extremely thin ( 20mm thick ).
Applying to hydraulic cylinder, its total length becomes space saving.
◆Associated controller
・Analogue output:GYHC
・Digital output:GYDC-S1, GYDC-05
・IRDS-GY : When using the IRDM, you can connect with
CC-Link, CC-Link IE Field, PROFIBUS, EtherNet/IP, and EtherCAT.
( Created on Feb. 3. 2023 )
Non-linearity | ≦±0.025%FS Typ. |
---|---|
Resolution | ( Analogue ) ≦0.01%FS ( Digital ) 0.1mm |
Repeatablity | ≦±0.01%FS |
Temp. drift | ≦±40ppmFS / °C |
Max. Pressure | 35MPa ( probe rod ) |
Operating temp. | -20°C〜+80°C |
Storage temp. | -40°C〜+80°C |
Vibration | 6G ( or 40Hz 2mmPP ) |
Shock | 50G ( 2msec ) |
IP grade | IP67 |
・The above mentioned accuracy applies to sensors with an effective stroke of 300mm or more.
・The specification of stroke less than 300mm is equal that of stroke 300mm.

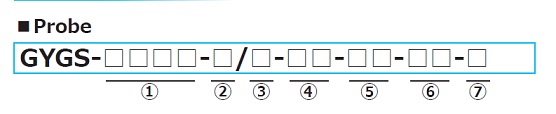

① Effective stroke
15〜3000mm
② Head dead zone
50:50mm (Std.)
□:□mm ( option ) ( specified by customers )
・Possible Min. length depends on the selected magnet or float.
③ Tip dead zone
□: 70mm/ 90mm/ 100mm (Std.)
□ | tip DZ | magnet | float |
---|---|---|---|
70 | 70mm | M2PN, M0SM, M0LM, M3, M11N, BA | F25N, F28N |
90 | 90mm | F28S, F30S | |
100 | 100mm | T144, T163 | F40S, F42S, F50S, F54S |
④ Thread / Rod diameter
N8 :M18xP1.5, rod Φ8 (Std.)
N :M18xP1.5, rod Φ10 ( thread length = 22mm )
・In case of an effective stroke 1001mm or more, the rod Φ10 should be used.
magnet | float |
---|---|
M2PN :No.2PN (Std.) M0SM :No.ΦSPM M0LM :No.ΦLPM M3 :No.3 M11N :No.11N T144 :No.T14-M4 T163 :No.T16-M3 BA : No.2KYN-17-LG | F28S:Φ28 SS316L F30S :Φ30 SS316L F40S :Φ40 SS316(B) F42S :Φ43 SS316L F50S :Φ50 SS316L F54S :Φ54 SS304 F25N :RF-A10 plastic F28N :RF-A6 plastic |
・Selecting magnet from page 116〜118(GG).
・Please consult our factory in case of requesting special magnet or float.
・This model code means only specifying associated magnet or float.
・Ordering magnet or float individually.
・In case of an effective stroke 2001mm or more, “No.2KYN-17-LG”
magnet (page 116) would be recommended.
⑥ Cable connection
< radial direction >
G□LF : pigtail / cable end : free
G□LA : pigtail / cable end : with connector for relay
( □ : cable length (m)、 Max.5m ) (*)
< axial direction ( option ) >
G□SF :p igtail / cable end : free
G□SA : pigtail / cable end : with connector for relay
( □ : cable length (m)、 Max.5m ) (*)
(*) In case of using extension cable
sensor cable (m) + extension cable (m) ≦ 20m
・Please confirm extension cable on page 120-122.
⑦ Output
00 :depends on external controller ( total rod length : ≦1400mm )
24 :depends on external controller ( total rod length : ≧1401mm )

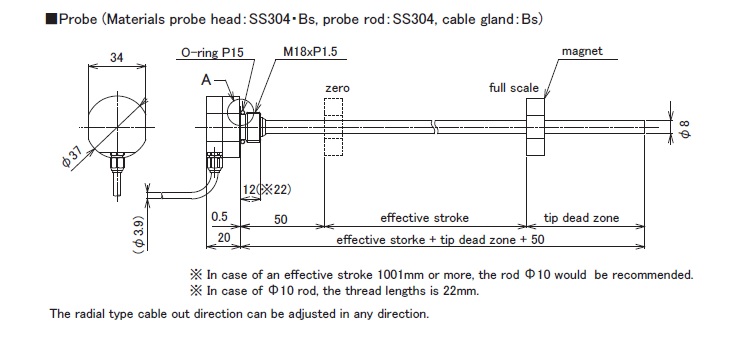

Probe | Cable axial out type | Detail of A section | Cable | |||
---|---|---|---|---|---|---|
