SANTEST CO.,LTD.

GYcRP Probe.High Performance Series

High Performance Series

GYcRP Probe.

High performance probe
GYcRP Probe.

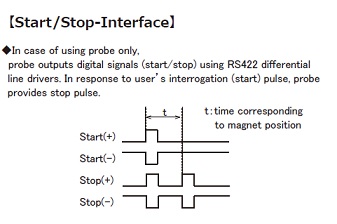

Between probe and controller, RS-422 differential line driver
transmission, providing robustness against electrical noise, is used.
In combination with a digital output controller, Min.1μm resolution
is possible.
SRT option and probe rod 200°C option are available.



◆ Associated controller
 ・Analogue output:GYHC
 ・Digital output:GYDC-S1, GYDC-05

 ・IRDS-GY : When using the IRDM, you can connect with
    CC-Link, CC-Link IE Field, PROFIBUS, EtherNet/IP, and EtherCAT.
 ・DC-Q (page 60) : MELSEC-Q built-in unit


( Created on Feb. 3.2023)

Specifications

Non-linearity≦±0.05%FS Typ.
Resolution( Analogue ) ≦0.01%FS
( Digital ) 0.1mm
Repeatability≦±0.01%FS
Temp. drift≦±50ppmFS /°C
Max. Pressure35MPa ( probe rod )
Operating temp.-20°C〜+80°C
Storage temp.-40°C〜+80°C
Vibration6G ( 40Hz 2mmPP )
Shock100G ( 2msec )
IP gradeIP67

 ・The above mentioned accuracy applies to sensors with an effective stroke of 300mm or more.
 ・The specification of stroke less than 300mm is equal that of stroke 300mm.

Model No.

① Effective stroke
  15〜5200mm


② Head dead zone
  50 :50mm (Std.)
  □ :□mm ( option ) ( specified by customers )
・Possible Min. length depends on the selected magnet or float.


③ Tip dead zone
  □ : 70mm/ 90mm/ 100mm (Std.)


tip DZmagnetfloat
7070mmM2P, MG0, M11F25N, F28N
9090mmF28S, F30S
100100mmT142, T162F40S, F42S,
F50S, F54S


   □:□mm ( option ) ( specified by customers )
   ・Possible Min. length depends on the selected magnet or float.


④ Thread / Rod diameter
  M :M24xP1.0, rod Φ10 (Std.)
  N :M18xP1.5, rod Φ10
  U :3/4-16UNF-3A, rod Φ10
  M8 :M24xP1.0, rod Φ8
  N8 :M18xP1.5, rod Φ8
  U8 :3/4-16UNF-3A, rod Φ8
  M14 :M24xP1.0, rod Φ13.8


⑤ Associated magnet or float

magnetfloat
M2PN :No.2P (Std.)
MG0 :No.Φ
M11 :No.11
T142 :No.T14-M2
T162 :No.T16-M2
F28S :Φ28 SS316L
F30S :Φ30 SS316L
F40S :Φ40 SS316(B)
F42S :Φ43 SS316L
F50S :Φ50 SS316L
F54S :Φ54 SS304
F25N :RF-A10 plastic
F28N :RF-A6 plastic
・Please consult if you select a magnet or a float of other than above.
・This Model code means only specifying associated magnet or float.
・When you need a magnet or float, please order separately.


⑥ Cable connection
  CN :connector
  △G□F :pigtail / cable end : free
  △G□A :pigtail / cable end : with connector for relay
  △G□FC :pigtail / cable end : with connector for GYFC2/3
    ( □ :cable length (m)、Max.10m ) (*)
    ( △ :cable type
     S :standard, H :high temp. cable, R :robot cable, UL :cUL cable)

 <Water proof option>(recommendation : pigtail (WP3G))
  WPCN :submersible connector type
  WP3G□F :pigtail / cable end : free
  WP3G□A :pigtail / cable end : with connector for relay
  WP3G□FC :pigtail / cable end : with connector for GYFC2/3
   (□: cable length(m)、Max.10m)(*)

   ・Page 113 shows the detailed information
   (*) In case of using extension cable
     sensor cable (m) + extension cable (m) ≦ 200m
   ・Mating connectors are not included.
    If you Mating connectors, please specify separately.
     (Straight or L-shaped connectors can be selected.)

⑦ Output
  00:depends on external controller


⑧ Option
  blank : without option
  SRT : SRT option (Recommended: pigtail type)
  H0 : High temp. rod (100°C for rod only)
  H1E : High temp. rod (120°C for rod only, with heat sink)
  H2E : High temp. rod (200°C for rod only, with heat sink)

  ・Please confirm the details of options on page 112-114.

Dimensions

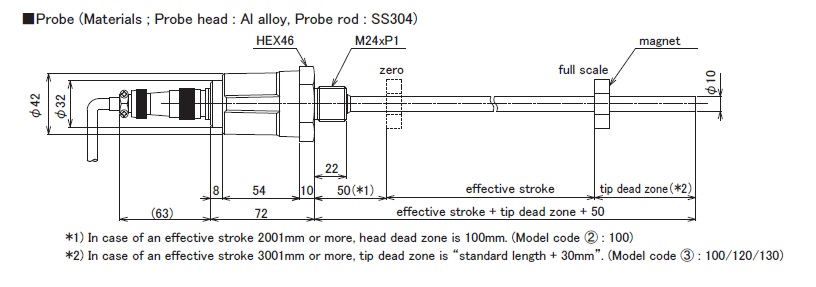

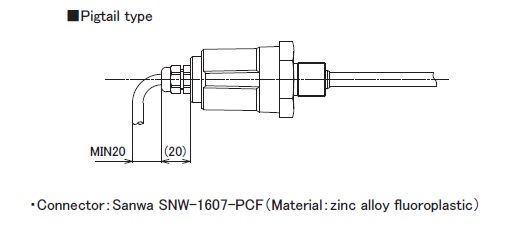

Probe Pigtail type
Zoom ZoomZoom
