GYFRS probe is the robust type against vibration and shock.
Vibration proof (10G) and shock proof (200G) are available.
Between probe and controller, RS-422 differential line driver
transmission, providing robustness against electrical noise,
is used.
In combination with a digital output controller, Min.1μm
resolution is possible.
A thin type head enabled to miniaturize equipment, and flange
installation improved workability compared with a conventional
screw.
◆ Associated controller
・Analogue output:GYHC
・Digital output:GYDC-S1, GYDC-05
・IRDS-GY : When using the IRDM, you can connect with
CC-Link, CC-Link IE Field, PROFIBUS, EtherNet/IP, and EtherCAT.
・DC-Q : MELSEC-Q built-in unit
( Created on Feb. 3. 2023 )
| Non-linearity | ≦±0.025%FS Typ. |
|---|---|
| Resolution | ( Analogue ) 16bit ( Digital ) Min. 1μm |
| Repeatablity | ≦±0.001%FS |
| Temp. drift | ≦±20ppmFS /°C |
| Max. Pressure | 35MPa ( probe rod ) |
| Operating temp. | -20°C〜+80°C |
| Storage temp. | -40°C〜+80°C |
| Vibration | 10G ( 40Hz 2mmPP ) |
| Shock | 200G ( 2msec ) |
| IP grade | IP67 ( option IP68 ) |
・The above mentioned accuracy applies to sensors with an effective stroke of 300mm or more.
・The specification of stroke less than 300mm is equal that of stroke 300mm.
・Resolution depends on associated controller
① Effective stroke
15〜3500mm
② Head dead zone
50:50mm (Std.)
□:□mm ( option ) ( specified by customers )
・Possible Min. length depends on the selected magnet or float.
③ Tip dead zone
S : 70mm/ 90mm/ 100mm(Std.)
| □ | tip DZ | magnet | float |
|---|---|---|---|
| 70 | 70mm | M2PN, M3, M11N, BA | F25N, F28N |
| 100 | 100mm | T144, T163 | F40S, F42S, F50S, F54S |
④ Thread / Rod diameter
F : flange, rod Φ10 (Std.)
| magnet | float |
|---|---|
| M2PN :No.2P (Std.) M3 :No.3 M11N :No.11N T144 :No.T14-M4 T163 :No.T16-M3 BA :No.2KYN-17-LG | F40S :Φ40 SS316(B) F42S :Φ43 SS316L F50S :Φ50 SS316L F54S :Φ54 SS304 F28N :RF-A6 plastic |
⑥ Cable connection
CN : connector
△G□F :pigtail / cable end : free
△G□A :pigtail / cable end : with connector for relay
△G□FC :pigtail / cable end : with connector for GYFC2/3
( □ :cable length (m)、Max.10m ) (*)
( △ :cable type
S :standard, H:high temp. cable, R:robot cable, UL : cUL cable)
＜Water proof option＞(recommendation : pigtail (WP3G))
WPCN :submersible connector type
WP3G□F:pigtail / cable end : free
WP3G□A:pigtail / cable end : with connector for relay
WP3G□FC:pigtail / cable end : with connector for GYFC2/3
(□:cable length(m)、Max.10m)(*)
・Page 113 shows the detailed information.
(*) In case of using extension cable
sensor cable (m) + extension cable (m) ≦ 200m
・Please confirm extension cable on page 120〜122.
・Ordering loose mating connector individually.
⑦ Output
00:depends on external controller
| Connector type | Pigtail type | Cable | ||||
|---|---|---|---|---|---|---|
 |  |  | ||||
|
| |
・Connector type
CN : Sanwa SNW-1607-PCF(Material:zinc alloy fluoroplastic)
WPCN : Tajimi TC1108-12A10-7F(8.6) (Material:brass with Ni plating)
・Suitable cable diameter:Φ6.6-Φ7.5、Wire size:0.5mm2

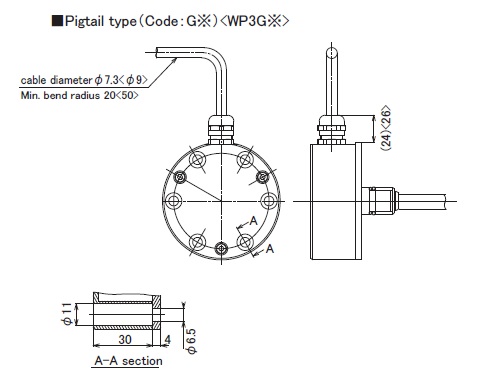

・The figure in < > is the figure of IP68 type(WPCN, WP3G*).
・Applicable O ring type is P-14. Back-up ring is strongly suggested in usage.
・Water proof option (WP3G*) has a protection tube.

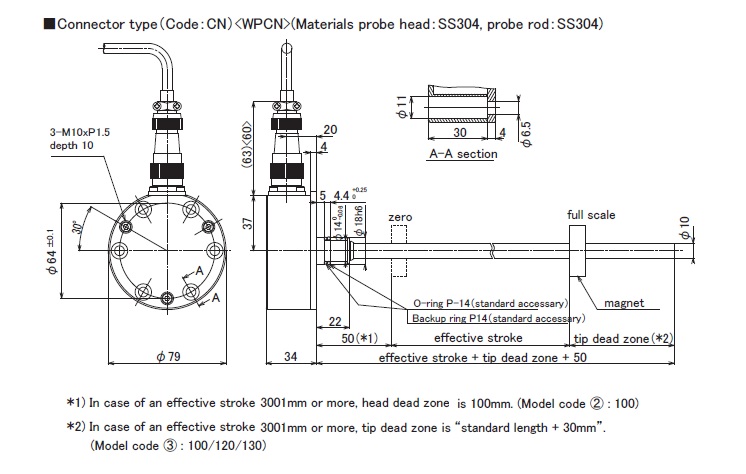

Please refer the dimensions on page 113.
