SANTEST CO.,LTD.

Option-2: Waterproof Probe (IP-68).Option

Option

Option-2: Waterproof Probe (IP-68).

Option-2: Waterproof Probe (IP-68).

Robust outer case and connector offer GY waterproof series and can
be used in upto 300kPa (underwater 30 meter) pressure.
Application in submarine robot, watergate etc are examples.
You can select the inside sensor element from
All-in-one type (GYcAT, GYAF1, GYRHP-MRA) or
Separated controller type (GYcRP, GYcRS, GYFRS, GYRHP-MR6).

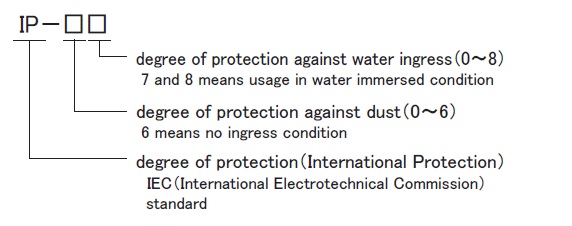

◎IP grade IP68
 Can be used continuously submerged under water up to the
 specified water pressure.
 (This sensor can be used up to 300kPa.) (Max. depth: 30m)



 ( Created on Feb. 8. 2023 )

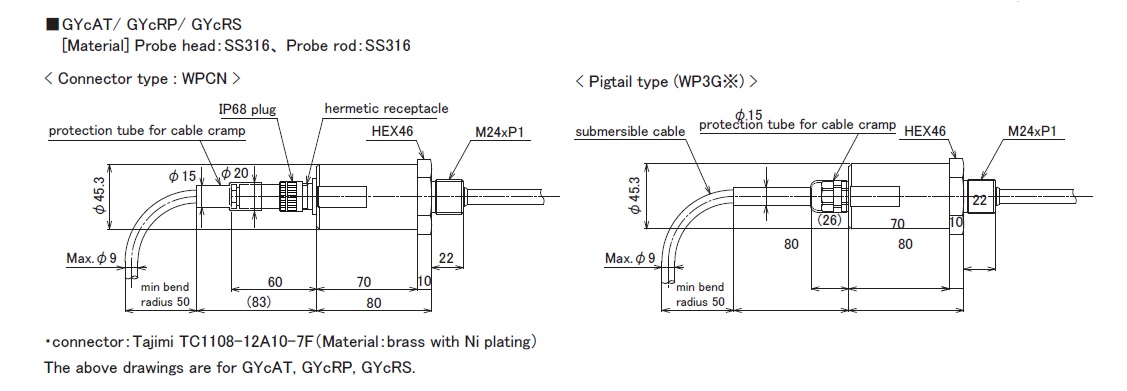

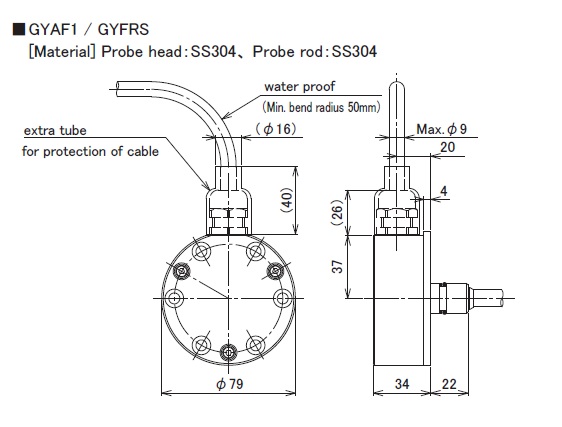

Model No.

Dimensions

GYAF1 / GYFRS GYcAT / GYcRP / GYcRS
Zoom Zoom

Material probe head : SS316
Probe rod : SS316
