This is a converter module for GY sensor of IRD series.
(GY sensor : Magnetstrictive displacement transducer)
Two models are available, connecting one sensor with magnet position
and velocity or two sensors with each magnet position.
By combining with the IRD series master module, various industrial
networks can be used.
[ Connectable probe ]
G1 type: GYcRS, GYMR6, GYFRS, GYHTR, GYKM-RS, GYKMR,
GYRHP-MR6, EX-GYdT-R
G2 type: GYcRP, EX-GYdS-R
G3 type: GYHR
G4 type: GYSE-R
G5 type: GYMS, GYGS
G6 type: IGY4
[ Combination IRD Master Module ]
・ CC-Link: IRDM-CCL
・ CC-Link IE Field: IRDM-CFN
・ EtherNet / IP: IRDM-EP1
・ EtherCAT: IRDM-ECT
・ ProfibusDP: IRDM-DP
| Device type | IRDS-GY10 : 1 sensor IRDS-GY20 : 2 sensor |
|---|---|
| Resolution | Selectable G1, G4, G6 : Min. 0.001mm G2, G3, G5 : Mini.0.1mm |
| Connectable sensor | G1:GYcRS, GYMR6, GYFRS, GYHTR, GYKM-RS, GYKMR, GYRHP-MR6, EX-GYdT-R G2:GYcRP, EX-GYdS-R G3:GYHR G4:GYSE-R G5:GYMS, GYGS G6:IGY4 |
| Sampling | Stroke: 1000mm or less: 1ms Stroke: 1001〜2500mm: 2ms Stroke: 2500mm or more: 4ms |

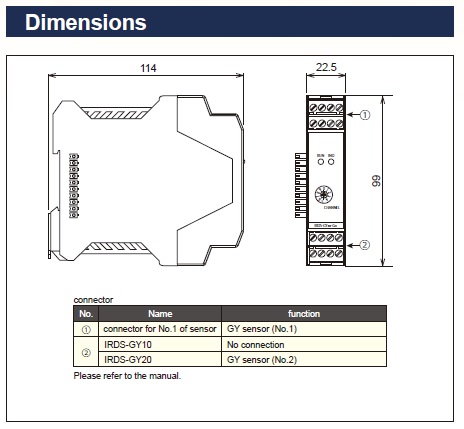

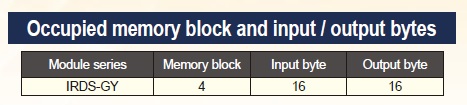

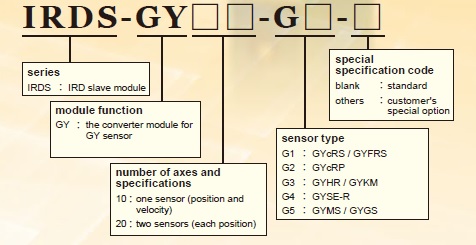

① Number of position detection axes
10: 1 axis Position / Speed output
20: 2-axis Position output
② Sensor type
G1:GYcRS, GYMR6, GYFRS, GYHTR, GYKM-RS, GYKMR, GYRHP-MR6, EX-GYdT-R
G2:GYcRP, EX-GYdS-R
G3:GYHR
G4:GYSE-R
G5:GYMS, GYGS
G6:IGY4
③ Option
Blank : No options
Symbol : Special specifications
 | ||||||
|
G1:GYcRS,
